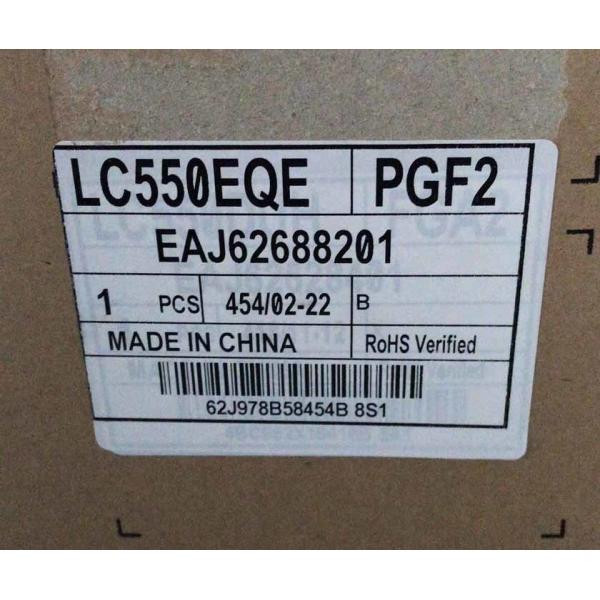

LC550EQE-PGF2 LG Display 55" 3840(RGB)×2160 350 cd/m² INDUSTRIAL LCD DISPLAY

Name: LC550EQEPGF2 LG Display 55quot 3840RGB2160 350 cdm INDUSTRIAL LCD DISPLAY
Brand: LG Display
Price: 1 USD

China LC550EQE-PGF2 LG Display 55" 3840(RGB)×2160 350 cd/m² INDUSTRIAL LCD DISPLAY wholesale

Brand Name : LG Display

Model Number : LC550EQE-PGF2

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 100PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LC550EQE-PGF2

BRAND : LG Display

SIZE : 55 inch

BRIGHTNESS : 350CD/M2

Lamp Type : WLED

RESOLUTION : 3840(RGB)×2160 [UHD] 80PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LC550EQE-PGF2 Application Details

Basic Detail :	Manufacturer		Model Name	LC550EQE-PGF2
	Panel Type	a-Si TFT-LCD , LCM	Another Name	LC550EQE (PG)(F2)
	Panel Size	55 inch	Designed For
Maximum Ratings :	OP Temperature	0 ~ 50 °C	ST Temperature	-20 ~ 60 °C

LG Display LC550EQE-PGF2 Optical Details

Basic Information :	Luminance	400 cd/m² (Typ.)	Contrast Ratio	1200 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	6 (Typ.)(G to G) (ms)
	Viewing Angle	89/89/89/89 (Min.)(CR≥10)	Operating Mode	IPS, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.281; Wy:0.288	Support Color	16.7M/1.06B (8-bit / 8-bit + Dithering)
Color Performance :	Color Temperature	9966K	White Uniformity	1.54 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	72%	sRGB	96% coverage
	Adobe RGB	73% coverage	DCI-P3	74% coverage
	Rec.2020	54% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :	Outdoor Visibility	No	Transmissivity	-
Dispaly Performance :	3D Tech	3D (Polarizer Glass)	Reflectance	-

LG Display LC550EQE-PGF2 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Power Consumption :	111.5W (Typ.)

LG Display LC550EQE-PGF2 Interface Details

Signal Electrical :	Input Current	1.74/2.26A (Typ./Max.)		Input Voltage	12.0V (Typ.)
Signal Electrical :	Consumption	20.8/27.1W (Typ./Max.)	Signal Interface	V-by-One 8 lane
Interface Features :	Position	-	Physical Type	Connector
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :	JAE	FI-RE51S-HF	1 pcs	0.5 mm	51 pins

LG Display LC550EQE-PGF2 Lightting Details

Lamp Features:	Lamp Shape	-	Lamp Type	WLED	Position	Edge light type
Lamp Features:	Exchange	-	Amount	-	Life	50K(Typ.) (Hours)
Lamp Electrical :	Input Current	105±6mA		Input Voltage	72.0±4.8V
Lamp Electrical :	Consumption	90.7/96.8W (Typ./Max.)
Interface Features :	Position	-	Physical Type	Connector
Interface Detail :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
	UJU	HS100-L08N-N62	1 pcs	1.0 mm	8 pins
	UJU	HS100-L08N-N62-A	1 pcs	1.0 mm	8 pins
Backlight Driver :	No

LG Display LC550EQE-PGF2 Packing Details

Package Box :	Amount	Size (L×W×H)	Weight
Package Box :	16 pcs / box	1440×1140×965 mm
