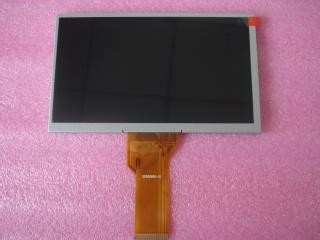

TCG070WVLQGPNN-AN40 Kyocera 7.0INCH LCM 800×480RGB 1000NITS WLED LVDS INDUSTRIAL LCD DISPLAY

Name: TCG070WVLQGPNNAN40 Kyocera 70INCH LCM 800480RGB 1000NITS WLED LVDS INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

China TCG070WVLQGPNN-AN40 Kyocera 7.0INCH LCM 800×480RGB 1000NITS WLED LVDS INDUSTRIAL LCD DISPLAY wholesale

Brand Name : Kyocera

Model Number : TCG070WVLQGPNN-AN40

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 500PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

BRAND : Kyocera

MODEL NUMBER : TCG070WVLQGPNN-AN40

SIZE : 7.0INCH

RESOLUTION : 800×480RGB

BRIGHTNESS : 1000 cd/m² (Typ.)

Interface Type : LVDS (1 ch, 6/8-bit) , 30 pins Connector

Light Source : WLED , 70K hours , With LED Driver

Environment : Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C

Contact Now

Kyocera TCG070WVLQGPNN-AN40 Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias
Basic Information :		TCG070WVLQGPNN-AN40	a-Si TFT-LCD , LCM	-
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		-30 ~ 80 °C	-30 ~ 80 °C	-

Kyocera TCG070WVLQGPNN-AN40 Mechanical Features

Screen Size :	7.0"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	800(RGB)×480, WVGA	RGB Vertical Stripe	0.0635×0.1905 mm	0.1905×0.1905 mm [133PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	152.4×91.44 mm	154.4×93.4 mm	169.8×109.7 mm	7.5/9.7 (Typ./Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	15:9	Landscape type
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	230g	-	Antiglare
Holes & Brackets :	Side mounting holes (4-M2) on left, right bezel

Kyocera TCG070WVLQGPNN-AN40 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	1000 cd/m² (Typ.)	AWV, Normally Black, Transmissive	750:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	Symmetry	85/85/85/85 (Typ.)(CR≥10)	18/12 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6685K	262K/16.2M (6-bit / 6-bit + FRC)	X:0.310; Y:0.325
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	51%	71%	53%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	53%	38%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Performance :	3D Technology	Outdoor Visibility	Reflectance
Performance :	-	Sunlight Readable	-

Kyocera TCG070WVLQGPNN-AN40 Electronics Features

Refresh Rate :	60Hz
Reverse Scan :	Yes (180°)
Power Consumption :	5.22W (Typ.)

Kyocera TCG070WVLQGPNN-AN40 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type	70K(Typ.)	-	-	-
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	With LED Driver			Included in panel signal interface		-
WLED Driver Electrical :	Input Voltage		Input Current			Power Consumption
WLED Driver Electrical :	12.0±1.2V		380/550mA (Typ./Max.)			4.56W (Typ.)

Kyocera TCG070WVLQGPNN-AN40 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	3.3V (Typ.)		200/260mA (Typ./Max.)			0.66W (Typ.)
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	LVDS (1 ch, 6/8-bit)			Connector		-
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :	HRS	MDF76GW-30S-1H(55)	1 pcs	30 pins	1.0 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
